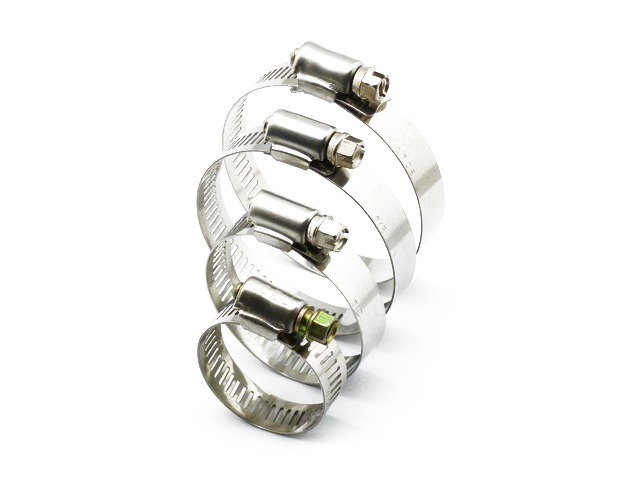

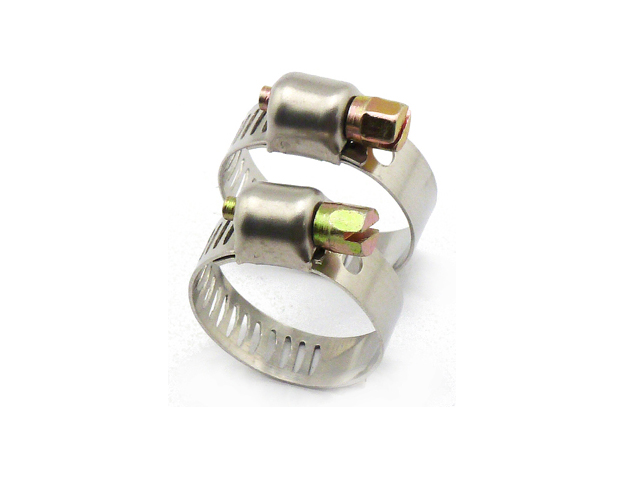

Product Description

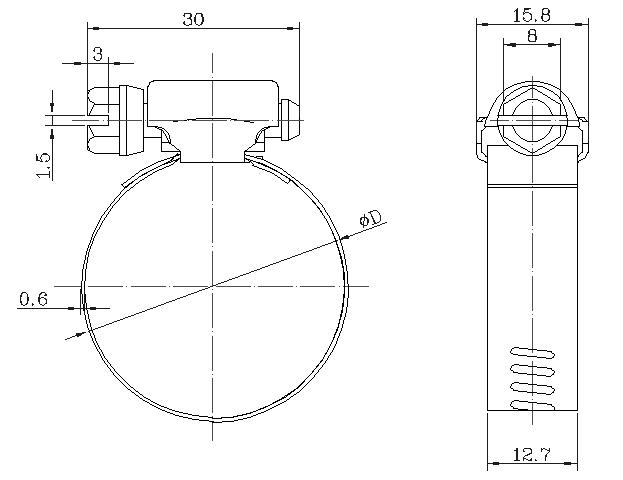

1.bandwidth 12.7mm/ (1/2'')
2.Material; w1& w2&w3&w4 series

W1: Galvanized steel
W2: Screw is galvanized steel, others are AISI series stainless steel
W4: AISI series stainless steel

3. Installation Torque:  30-35 in.-lbs.; 3.4-4.0 Nm.

SIZING / CLAMPING RANGE CHART

SAE Sizes	Part No.	Min. Dia. (in.)	Max. Dia. (in.)	Min. Dia. (mm)	Max. Dia. (mm)	Fits Hose I.D. Min. (in.)	Fits Hose I.D. Max. (in.)
6	67004 0006	3/8	7/8	10	22	5/16	3/8
8	67004 0008	7/16	1	11	25	5/16	1/2
10	67004 0010	1/2	1  1/16	13	27	3/8	5/8
12	67004 0012	1/2	1  1/4	13	32	3/8	3/4
16	67004 0016	11/16	1  1/2	18	38	3/4	7/8
20	67004 0020	3/4	1  3/4	19	44	3/4	1  1/8
24	67004 0024	1	2	25	51	7/8	1  3/8
28	67004 0028	1  1/4	2  1/4	32	57	1  1/4	1  5/8
32	67004 0032	1  1/2	2  1/2	38	63	1 1/2	1  7/8
36	67004 0036	1  3/4	2  3/4	44	70	1  3/4	2
40	67004 0040	2	3	51	76	2	2  1/4
44	67004 0044	2  1/4	3  1/4	57	82	2  1/4	2  1/2
48	67004 0048	2  1/2	3  1/2	64	114	2  1/2	4
52	67004 0052	2  3/4	3  3/4	70	95	2  3/4	3
56	67004 0056	3	4	76	101	3	3  1/2
60	67004 0060	3  1/4	4  1/4	83	108	3  1/4	3  1/2
64	67004 0064	2  1/2	4  1/2	64	114	2  1/2	4
72	67004 0072	3	5	76	127	3	4  1/2
80	67004 0080	3  1/2	5  1/2	89	140	3  1/2	5
88	67004 0088	4	6	102	152	4	5  1/2
96	67004 0096	4  1/2	6  1/2	114	165	4  1/2	6
104	67004 0104	5	7	127	178	5	6  1/2
